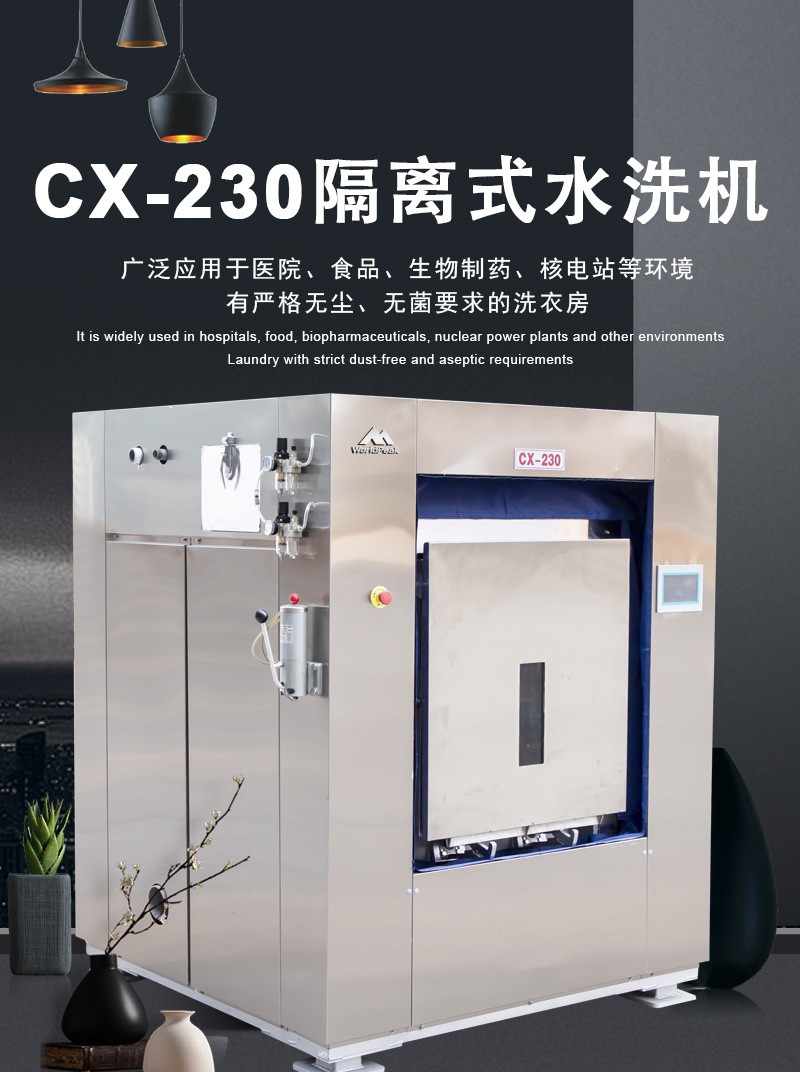

CX-230 Barrier Washer Widely used in hospitals, food, biopharmaceutical, nuclear power plants and other laundry rooms with strict dust-free
CX-230 Barrier Washer
Widely used in hospitals, food, biopharmaceutical, nuclear power plants and other laundry rooms with strict dust-free and sterile requirements
| Parameter Item | CX230 | CX250 | CX2100 |
|---|---|---|---|
| Rated Washing Capacity (kg) | 30 | 50 | 100 |
| Washing Time (min) | 45~60 | 45~60 | 45~60 |
| Drum Diameter (mm) | 800 | 980 | 1200 |
| Drum Depth (mm) | 600 | 670 | 885 |
| Motor Power (KW) | 4 | 5.5 | 7.5 |
| Inverter Power (KW) | 5.5 | 7.5 | 11 |
| Cold Water Inlet (inch) | DN40 | DN40 | DN40 |
| Hot Water Inlet (inch) | DN40 | DN40 | DN40 |
| Steam Inlet (inch) | DN25 | DN25 | DN25 |
| Drain Outlet (mm) | Φ89 | Φ89 | Φ114 |
| Compressed Air Pressure (MPa) | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 |
| Overall Dimensions Height (mm) | 1725 | 1910 | 2205 |
| Overall Dimensions Depth (mm) | 1325 | 1505 | 1735 |
| Overall Dimensions Width (mm) | 1455 | 1525 | 1900 |
| Machine Weight (Kg) | 1380 | 1790 | 3220 |
Note: As our equipment is continuously upgraded and iterated, the product appearance and parameters in the materials are for reference only. If there are any changes, the actual product shall prevail.
If you are interested in this product, please contact Shanghai Ruili Laundry Equipment Co., Ltd. directly
Company: Shanghai Ruili Laundry Equipment Co., Ltd.
Telephone: +86 21-56179999
Mobile: +86 13564507080
Email: [email protected]
Address: No. 1000 Fengxiang Road, Baoshan District, Shanghai
